Worldclass Treadmills for physiological research and Professional Sports

Rodby Innovation is a small Swedish family company that has successfully established itself and become a world leader in terms of Swedish made professional treadmills for professional sports, medical rehabilitation, and research. Our products are of the highest quality, have the best repetition accuracy and are well thought out not only in the design but also easy to install in existing premises. This also applies to the largest skate treadmills that are delivered in parts. We offer service agreements for all our products.

delivered Rodby treadmills for running and roller-skiing around the world since 2002

Rodby Innovation manufactures, installs and performs service for Rodby Treadmills, Rodby Skating Treadmills, Rodby Bicycles, Rodby Aquatrots and Rodby’s customized products.

Rodby treadmills have superior accuracy and a highly accurate electronically controlled elevation mechanism. The treadmills are built with permanent magnet motors, a control system 2.0 and many options for all types of users but with an emphasis on roller skiers. The treadmills are controlled via touch screen, via remote control (option) or with an external client PC (RS-232). The elevation angle is adjustable between 0-14 ° (0-25%), and the speed between 0-25 km/h (0-40 km/h as an option) with an accuracy of ± 0.2 °. The speed can be increased up and down in 0.1 km/h increments. Rodby’s treadmill is characterized by outstanding accuracy and reproducibility.

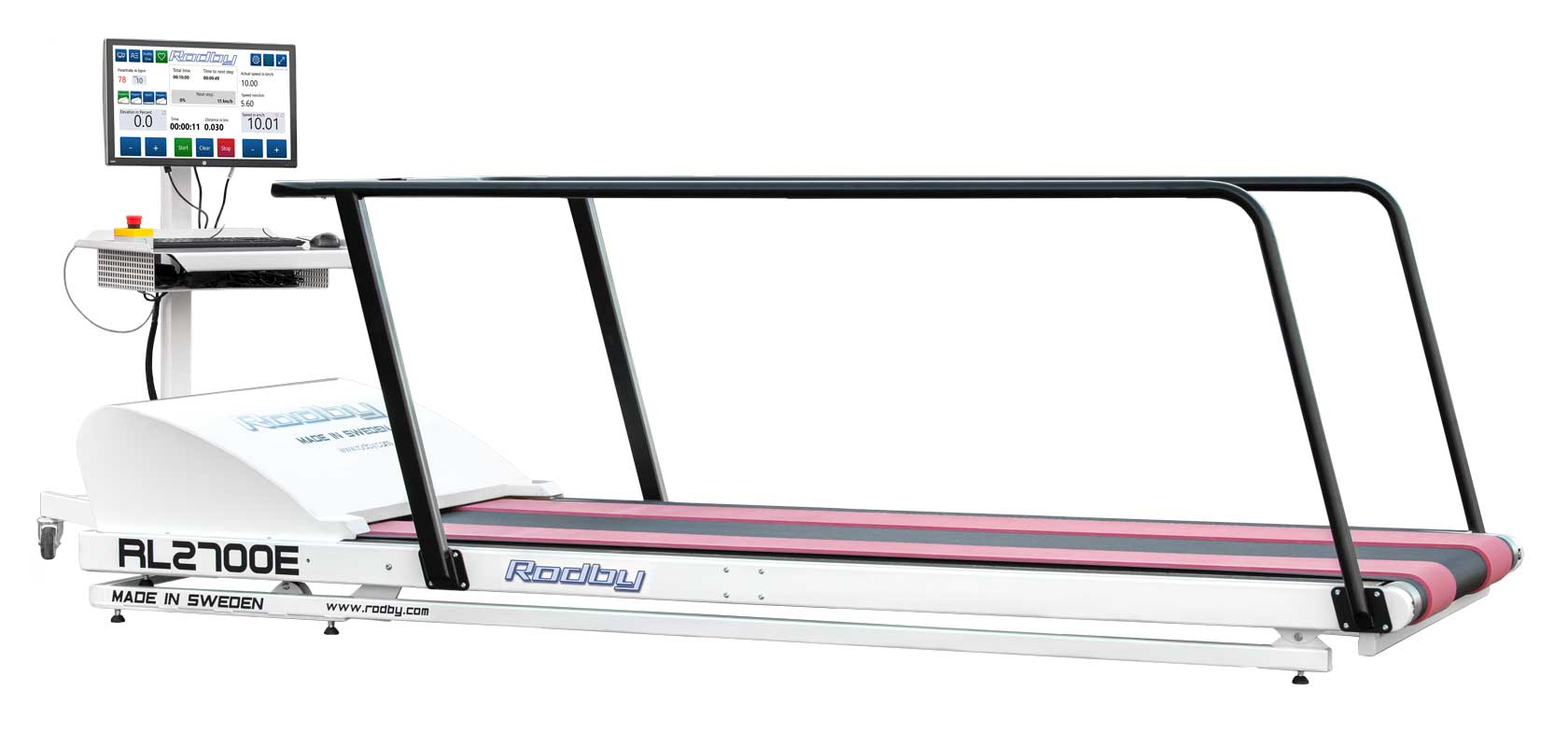

RL2700E x 1000 with vulcanized belt strips

RL2700E x 1000 without vulcanized belt strips

Rodby builds the large treadmills used by the elite in cross country skiing for exercise and test lab application. RL3500E – also called the Skate Treadmill – is our bestseller for professional roller skiing and it is installed in a number of facilities worldwide. Rodby builds even bigger treadmills based on customer requests. Our biggest treadmill installed in 2014 is one in a wind tunnel in Nordic Winter Sports Center NVC in Östersund and it is 5.5 times 2.7 meters and tips both forwards and backwards. A truly unique solution from Rodby.

This treadmill is used to evaluate and optimize the use of the body’s resources in its test lab for physiological and medical research in winter sports. The National Winter Sports Center focuses on integrating physiological measurements with biomechanics, i.e. measurements of force in combination with analysis of movements. Swedish Rodby’s treadmill meets high demands for reliability, precision and maintenance and they are used by many prominent players both in Sweden and abroad.

Since 2002 Rodby has delivered and installed about 136 treadmills at training centers, universities, sports colleges and for elite athletes. The treadmills are built in and adapted to both the location premises and the customer wishes. Since the company was founded in 1980, over 3,000 professional training bikes have been delivered to all continents. Today, approximately 250 of Rodby’s work cycles are operating in Swedish hospitals.

Treadmill models

Treadmill RL2500E x 700

Belt length: 250 cm. Belt width: 70 cm. Speed: 0-25 km/h. 0-40 km option. Elevation: 0-14° (0-25%). Pulse Control with pulse band Polar 7+10. Speed

Treadmill RL2000E x 600

Belt length: 200 cm. Belt width: 60 cm. Speed: 0-25 km/h. 0-40 km option. Elevation: 0-14° (0-25%). Pulse Control with pulse band Polar 7+10. Speed

Treadmill RL1602E x 500

Belt length: 160 cm. Belt width: 50 cm. Speed: 0-25 km/h. Elevation: 0-14° (0-25%). Pulse Control with pulse band Polar 7+10. Speed Deviation: ±1%. Elevation

Skate Treadmill RL3500E to RL5500E

Belt length: 350 cm to 550 cm. Belt width: 220 cm to 300 cm. Speed: 0-50 km/h. Elevation: 0-14° (0-25%). Minus elevation option. Pulse Control

Rollerski Treadmill RL2700E x 1000

Belt length: 270 cm. Belt width: 100 cm. Speed: 0-25 km/h. 0-40 km option. Elevation: 0-14° (0-25%). Option is vulcanized rubber strips for poling. Pulse

Rollerski Treadmill RL2500E x 1000

Belt length: 250 cm. Belt width: 100 cm. Speed: 0-25 km/h. 0-40 km option. Elevation: 0-14° (0-25%). Option is vulcanized rubber strips for poling. Pulse

Rodby Control System 2.0

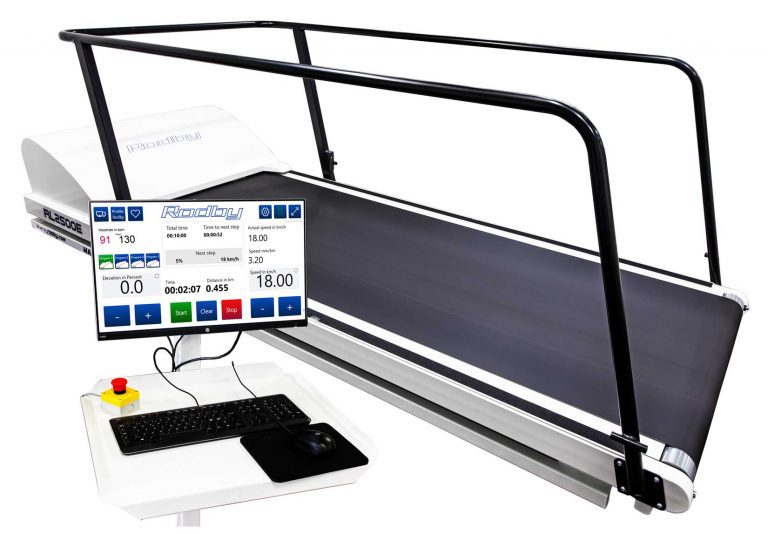

All treadmills are delivered with the new Rodby Control System 2.0 including a computer and a touch screen. Treadmills with Control System 2.0 have Pulse Control of belt speed as standard. The user interface language is English. Older Rodby Treadmills can be upgraded to Control System 2.0.

The interface of the Control System can be operated via touch screen or keyboard and computer mouse. You choose what suits you best. When the Control System is to be used next to the treadmill, touch control is preferred. The Control System allows user to create, edit and store Programs with parameters for speed, elevation and interval length in a Repository. The Control System also allows different user Profiles. All treadmills have pulse control as default which, when set, regulates the treadmill’s belt speed. An external communication over the Trackmaster RS-232 protocol can also control the track. Optional is also the use of a Remote Control via Bluetooth.

Security

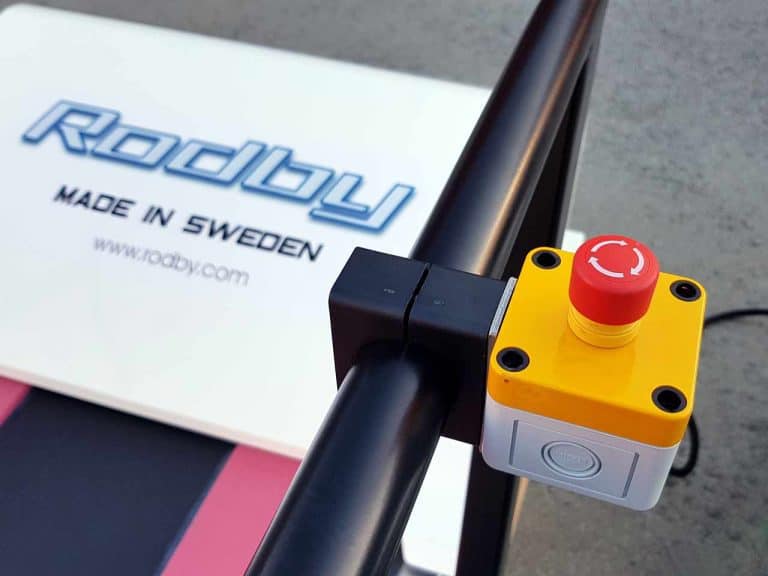

To ensure maximum security, there is an emergency stop system on all Rodby treadmills. It consists of an IEC-standard push-button switch, easy to reach for both users and managers/coaches. For more security related options listed for the Treadmills kindly visit our website. Optional is emergency stop that activates when the user stumbles or is too far back on the belt.

EXTERNal cOMMUNICATION

Rodby treadmills can be externally controlled via the Trackmaster (RS-232) protocol.

Delivery and INSTALLATION

Rodby products are well conceived in many ways and we recognize that the delivery and installation in an existing buildings always is an important parameter to take into account. Rodby treadmills are delivered unassembled in parts on a delivery wagon and assembled and installed on site. Winter sports center in Östersund is the prime example. There we installed Rodby’s largest treadmill without effect on the historic building and the treadmill could be taken through existing doors without problems.

SPECIFIcATIONs

Treadmill	Description
RL1602E MDD	1600 x 500 mm
RL2000E	2000 x 600 mm
RL2500E	2500 x 700 mm
RL2500E (rollerskiing)	2500 x 1000 mm
RL2500E (rollerskiing, vulcanized belt strips)	2500 x 1000 mm
RL2700E (rollerskiing)	2700 x 1000 mm
RL2700E (rollerskiing, vulcanized belt strips)	2700 x 1000 mm

Model	RL 1602E MDD	RL 2000E	RL 2500E	RL 2500E x1000	RL 2700E x1000
Type	Treadmill	Treadmill	Treadmill	Treadmill	Treadmill
Speed:	0-25 km/h	0-25 km/h 0-40 km/h*	0-25 km/h 0-40 km/h*	0-25 km/h 0-40 km/h*	0-25 km/h 0-40 km/h*
Belt length:	1600 mm	2000 mm	2500 mm	2500 mm	2700 mm
Can be eq. with rubber pole strips:	No	No	No	Yes	Yes
Belt width:	500 mm	600 mm	700 mm	1000 mm	1000 mm
RS-232 Connection:	Yes	Yes	Yes	Yes	Yes
Control Panel:	Rodby Control System 2.0	Rodby Control System 2.0	Rodby Control System 2.0	Rodby Control System 2.0	Rodby Control System 2.0
Manual Control:	Speed selection	Speed selection	Speed selection	Speed selection	Speed selection
“	Elevation selection	Elevation selection	Elevation selection	Elevation selection	Elevation selection
“	Target Pulse (w. pulse band). Supports Polar 7 and 10 atm.	Target Pulse (w. pulse band). Supports Polar 7 and 10 atm.	Target Pulse (w. pulse band). Supports Polar 7 and 10 atm.	Target Pulse (w. pulse band). Supports Polar 7 and 10 atm.	Target Pulse (w. pulse band). Supports Polar 7 and 10 atm.
“	Selection of Program	Selection of Program	Selection of Program	Selection of Program	Selection of Program
Speed Deviation	± 1 %	± 1 %	± 1 %	± 1 %	± 1 %
Elevation Deviation	± 0,2°	± 0,2°	± 0,2°	± 0,2°	± 0,2°
Display units:	Distance in kilometers	Distance in kilometers	Distance in kilometers	Distance in kilometers	Distance in kilometers
“	Time in hh:mm:ss	Time in hh:mm:ss	Time in hh:mm:ss	Time in hh:mm:ss	Time in hh:mm:ss
“	Speed in km/h, m/s or mps	Speed in km/h, m/s or mps	Speed in km/h, m/s or mps	Speed in km/h, m/s or mps	Speed in km/h, m/s or mps
“	Elevation in procent or degrees	Elevation in procent or degrees	Elevation in procent or degrees	Elevation in procent or degrees	Elevation in procent or degrees
Motor:	3,4 kW ~	3,4 kW ~ \| 5,34 kW ~*	5,34 kW ~	5,34 kW ~	5,34 kW ~
Power Consumption:	240V 16A	240V 16A \| 400V 16A	400V 16A	400V 16A	400V 16A
Weight:	250 kg	290 kg	380 kg	420 kg	450kg
Emergency Stop:	Switch	Switch	Switch	Switch	Switch
Elevation:	0-14° (0-25%)	0-14° (0-25%)	0-14° (0-25%)	0-14° (0-25%)	0-14° (0-25%)
Length:	2150 mm	2725 mm	3225 mm	3225 mm	3425 mm
Width:	840 mm	920 mm	1020 mm	1320 mm	1320 mm
Height:	1100 mm	1100 mm	1100 mm	1100 mm	1100 mm

Treadmill	Specification
RL3500E Skating Treadmill	3500 x 2500 mm
RL3500E Wide Skating Treadmill	3500 x 2700 mm
RL3500E Wide Skating Treadmill	3500 x 3000 mm
RL4500E Skating Treadmill	4500 x 2500 mm
RL4500E Wide Skating Treadmill	4500 x 2700 mm
RL4500E Wide Skating Treadmill	4500 x 3000 mm
RL5500E Skating Treadmill	5500 x 2500 mm
RL5500E Wide Skating Treadmill	5500 x 2700 mm
RL5500E Wide Skating Treadmill	5500 x 3000 mm

Model	RL 3500 E
Type	Treadmill and skate treadmill
Speed:	0 – 50 km/h
Belt length:	3500 mm
Belt width:	2500 mm (2700 optional)
RS-232 Connection:	Yes
Control Panel:	Yes
Manual Control:	Speed
“	Elevation
Speed Deviation	± 1 %
Elevation Deviation	± 0,2°
Class I, grounded
Display units:	Distance in meters
“	Speed in m/s
“	Speed in km/h
“	Speed in min/km
Motor:	6-16 kW
Power Consumption:	400V 32A
Weight:	2100 kg
Emergency Stop:	Switch
Elevation:	0-14° (0-25%)
Length:	3900 mm
Width:	3560 mm
Height:	720 mm

+ 0

installerade professionella träningscyklar i världen

Ergometer Bicycle and Aquatrot

Ergometer bicycle

Aquatrot

Swedish production

Rodby produces everything in the workshop shared with its mother company Öbergs Svets & Smide AB. Design, development, production, customer contacts and maintenance is based in Sweden. Most of the Rodby products can be customised according to customer requirements and application requirements. Adaptability and innovative thinking is along with the highest technical quality what characterizes Rodby Innovation AB. Your wishes are taken into account and if it is feasible in economic and technical terms, we design and build the product according to your specific wishes.
